Severe Fencing and Security Razor Blade Barbed Wire Making Machine

  • Severe Fencing and Security Razor Blade Barbed Wire Making Machine
  • Severe Fencing and Security Razor Blade Barbed Wire Making Machine
  • Severe Fencing and Security Razor Blade Barbed Wire Making Machine
  • Severe Fencing and Security Razor Blade Barbed Wire Making Machine

Severe Fencing and Security Razor Blade Barbed Wire Making Machine

    Min. Order: 1 Piece/Pieces

Basic Info

Model No.: Razor Wire Machine

Product Description

Razor Blade Barbed Wire Making Machine

1.Describe:

1.1 Machine:Razor Barbed Wire machine produce razor barbed wire ,The razor wire machine is composed of the main machine producing strip plates and the coiling machine that coils the wire into the strip plate. Razor barbed wire machine is light, easy to operate, high efficient. Using this type of razor barbed wire machine can save you twenty percent of raw materials in production.We can also adjust our machines per customers' request.
1.2 Razord:Razor type barbed wire widely used in high-grade, residence district, warehouses, prisons and other sites requiring severe fencing and security coils, crossed type and flat type according to the installation models.
1.3 Raw Material:Steel Strip Coil is GI or Staineless steel wire

Product Parameters


2.Machine(Support customer custom needs such as 5 / 7 / 9 / 11 / 13strips )

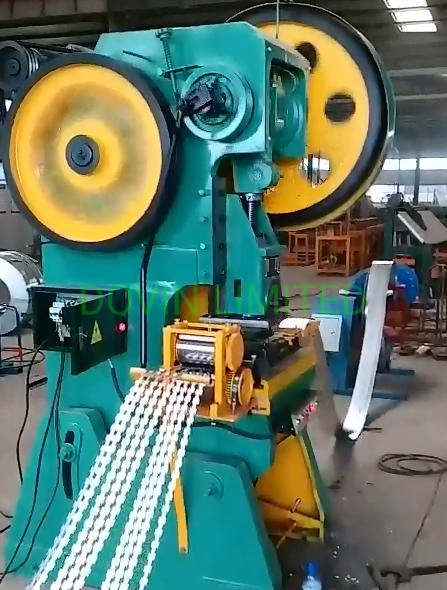

2.1Press Machine (9) Strips

Machine Quantity: 1 pcs
Pressure:40 tons
Motor:3KW
Speed:50 strokes/min
Numerical control
Exterior Size:2300(H)X1100(L)X1300(W)mm
Weight:2300KG
2.2Feeding Machine/Raw Material Discharging Machine
Feeding Machine(1set)
Motor:1.1KW
Exterior Size:1040X900X770MM
Weight:290KG
support range:450-550MM
2.3 Receiving Machine/synchronization frame
Receiving Machine(1set)
Motor:2.2KW
Exterior Size:940X900X600mm
Weight:320KG
Coiling range:220-740mm
2.4Wraping Machine/Frequency Coiling Machine(2SETS)
Motor:3 KW
Exterior Size:900X550X1000MM
Weight:330KG
Production:2 Tons/8 hour (frequency)
2.5Mould (BTO-22 One set/can make as your request, BTO-22 ----9 Strips, material width 130MM,thickness 0.45MM)

2.6Razor wire Specification:
Severe Fencing and Security Razor Blade Barbed Wire Making Machine



2.7Final Product:

Barbed Tape Wire Specification:(the length the diameter of the coil can be designed according to the customers need)
Outside Diameter No.of Loops The utmost efective length Type Notes
450mm 33 7-8M CBT-60.65 Single coil
500mm 56 12-13M CBT-60.65 Single coil
700mm 56 13-14M CBT-60.65 Single coil
960mm 56 14-15M CBT-60.65 Single coil
450mm 56 8-9M(3CLIPS) BTO-10.12.18.22.28.30 Cross type
500mm 56 9-10M(3CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 10-11M(3CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 8-10M(5CLIPS) BTO-10.12.18.22.28.30 Cross type
700mm 56 10-12M(5CLIPS) BTO-10.12.18.22.28.30 Cross type
800mm 56 11-13M(5CLIPS) BTO-10.12.18.22.28.30 Cross type
900mm 56 12- 14M(5CLIPS) BTO-10.12.18.22.28.30 Cross type
960mm 56 13-15M(5CLIPS) BTO-10.12.18.22.28.30 Cross type
980mm 56 14-16M(5CLIPS) BTO-10.12.18.22.28.30 Cross type
Severe Fencing and Security Razor Blade Barbed Wire Making Machine
Detailed Photos

Severe Fencing and Security Razor Blade Barbed Wire Making Machine

Severe Fencing and Security Razor Blade Barbed Wire Making Machine
Severe Fencing and Security Razor Blade Barbed Wire Making Machine

Severe Fencing and Security Razor Blade Barbed Wire Making Machine

Installation Accessories

Severe Fencing and Security Razor Blade Barbed Wire Making Machine

Application:
Razor type barbed wire widely used in highgrade, residence district, warehouses, prisons and other sites requiring severe fencing and security coils, crossed type and flat type according to the installation models.

Severe Fencing and Security Razor Blade Barbed Wire Making Machine

Service

1. Testingmachine before shipping.
2. Engineers available to service machinery overseas.
3. 1 yearsfor machinery warranty& 1 Yearsfor Core Components
4. Supplying professional operate instruction andvideos
5. Providingfree parts exceptquick-wear parts whenthe machine borke downwithin one year.
6.Lifetime after-sales service.
7.24 hours technical support by mobile or email.
